帶反饋信號手動對夾球閥

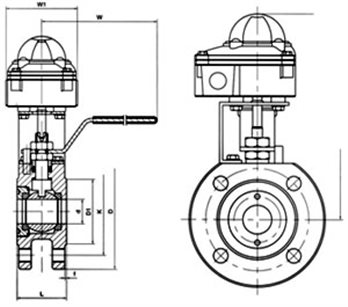

帶反饋信號手動對夾球閥外形尺寸圖
信號球閥主要外形和連接尺寸 單位(mm)
Q71F-16 | ||||||||||
通徑DN | d | L | D | K | n-Md | f | H | W | W1 | |
mm | in | |||||||||
15 | 1/2″ | 14 | 35 | 90 | 65 | 4-M12 | 2 | 170 | 145 | |
20 | 3/4″ | 19 | 38 | 100 | 75 | 4-M12 | 2 | 175 | 145 | 90 |
25 | 18″ | 24 | 42 | 110 | 85 | 4-M12 | 2 | 180 | 160 | 90 |
32 | 11/4″ | 29 | 50 | 135 | 100 | 4-M16 | 2 | 195 | 180 | 90 |
40 | 11/2″ | 38 | 60 | 145 | 110 | 4-M16 | 2 | 205 | 220 | 90 |
50 | 2″ | 48 | 72 | 160 | 125 | 4-M16 | 3 | 230 | 230 | 90 |
65 | 21/2″ | 64 | 95 | 180 | 145 | 4-M16 | 3 | 245 | 250 | 90 |
80 | 3″ | 72 | 118 | 195 | 160 | 8-M16 | 3 | 270 | 290 | 90 |
100 | 4″ | 92 | 140 | 215 | 180 | 8-M16 | 3 | 290 | 350 | 90 |
125 | 5″ | 110 | 175 | 245 | 210 | 8-M16 | 3 | 460 | 90 | |
150 | 6″ | 135 | 210 | 280 | 240 | 8-M20 | 3 | 610 | 90 | |
