Q45W三通四密封球閥

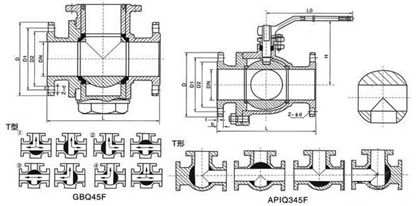

Q45W三通四密封球閥外形尺寸圖
四面座三通球具有結構緊湊、密封性好的特點,有“L”型和“T”型,其中“L”型可實現對介質流向進行切換兩種工況,圖a“L”型可實現對介質的分流或混流,四種工況;圖b,其驅動方式有手動、氣動、氣動彈簧復位、電動等。
主要零件材料
件名稱 | 材質 | ||||
閥體 | WCB | CF8 | CF8M | CF3 | CF3M |
球 | WCB、HCr | 1Cr18Ni9 | OCr7Ni12Mo2 | OOCr18Ni9 | OOCr17Ni12Mo2 |
閥座 | PTFE/2Cr13 | ||||
閥桿 | 1Cr13 | 1Cr18Ni9 | OCr17Ni12Mo2 | OOCr18Ni9 | OOCr17Ni12Mo2 |
填料 | PTFE/柔性石墨 |
國標L型連接尺寸及外形1.6MPa
型號 | 公稱通徑 | 尺寸 | |||||||||
L | L2 | D | D1 | D2 | b | f | Z-d | H | W | ||
Q44F-16C | 15 | 150 | 72 | 95 | 65 | 45 | 14 | 2 | 4-14 | 95 | 130 |
20 | 160 | 80 | 105 | 75 | 55 | 14 | 2 | 4-14 | 110 | 130 | |
25 | 180 | 90 | 115 | 85 | 65 | 14 | 2 | 4-18 | 120 | 140 | |
32 | 200 | 100 | 135 | 100 | 78 | 16 | 2 | 4-18 | 144 | 180 | |
40 | 220 | 110 | 145 | 110 | 85 | 16 | 3 | 4-18 | 152 | 220 | |
50 | 240 | 120 | 160 | 125 | 100 | 16 | 3 | 4-23 | 182 | 220 | |
65 | 260 | 130 | 180 | 145 | 120 | 16 | 3 | 4-18 | 193 | 240 | |
80 | 280 | 140 | 195 | 160 | 135 | 20 | 3 | 8-18 | 217 | 270 | |
100 | 320 | 160 | 215 | 180 | 155 | 20 | 3 | 8-18 | 245 | 350 | |
125 | 380 | 190 | 245 | 210 | 185 | 22 | 3 | 8-18 | 282 | 500 | |
150 | 440 | 220 | 280 | 240 | 210 | 24 | 3 | 8-23 | 319 | 600 | |
200 | 550 | 260 | 335 | 295 | 265 | 26 | 3 | 12-23 | 380 | 1000 | |
250 | 670 | 310 | 405 | 355 | 320 | 30 | 3 | 12-25 | 460 | 1400 | |
300 | 720 | 370 | 460 | 410 | 375 | 30 | 3 | 12-25 | 520 | 1800 |
美標L型連接尺寸及外形150LB
公稱通徑 DN | 尺寸 | |||||||||
(in) | (mm) | L | D | D1 | D2 | b | f | Z-φd | H | LO |
1/2 | 15 | 140 | 89 | 60.5 | 35 | 10 | 1.6 | 4-φ15 | 55 | 130 |
3/4 | 20 | 165 | 98 | 70 | 43 | 11 | 1.6 | 4-φ15 | 55 | 130 |
1 | 25 | 165 | 108 | 79.5 | 51 | 12 | 1.6 | 4-φ15 | 70 | 140 |
11/4 | 32 | 220 | 117 | 79 | 64 | 13 | 1.6 | 4-φ15 | 75 | 180 |
11/2 | 40 | 250 | 127 | 98.5 | 73 | 15 | 1.6 | 4-φ15 | 90 | 220 |
21/2 | 50 | 260 | 152 | 120.5 | 92 | 16 | 1.6 | 4-φ19 | 104 | 260 |
2 | 65 | 320 | 178 | 139.5 | 105 | 18 | 1.6 | 4-φ19 | 153 | 350 |
3 | 80 | 320 | 190 | 152.5 | 127 | 19 | 1.6 | 4-φ19 | 187 | 400 |
4 | 100 | 370 | 229 | 190.5 | 157 | 24 | 1.6 | 8-φ19 | 206 | 500 |
5 | 125 | 510 | 254 | 216 | 186 | 24 | 1.6 | 8-φ22 | 252 | 600 |
6 | 150 | 510 | 279 | 241.5 | 216 | 26 | 1.6 | 8-φ22 | 244 | 1000 |
8 | 200 | 580 | 373 | 298.5 | 270 | 29 | 1.6 | 8-φ22 | 283 | 1300 |
10 | 250 | 670 | 406 | 362 | 324 | 31 | 1.6 | 12-φ25 | 345 | 1600 |
12 | 300 | 720 | 483 | 432 | 381 | 32 | 1.6 | 12-φ25 | 420 | 2100 |
國標T型連接尺寸及外形1.6MPa
型號 | 公稱通徑 | 尺寸 | |||||||||
L | L2 | D | D1 | D2 | b | f | Z-d | H | W | ||
Q45F-16C | 15 | 150 | 72 | 95 | 65 | 45 | 14 | 2 | 4-14 | 95 | 130 |
20 | 160 | 80 | 105 | 75 | 55 | 14 | 2 | 4-14 | 110 | 130 | |
25 | 180 | 90 | 115 | 85 | 65 | 14 | 2 | 4-18 | 120 | 140 | |
32 | 200 | 100 | 135 | 100 | 78 | 16 | 2 | 4-18 | 144 | 180 | |
40 | 220 | 110 | 145 | 110 | 85 | 16 | 3 | 4-18 | 152 | 220 | |
50 | 240 | 120 | 160 | 125 | 100 | 16 | 3 | 4-23 | 182 | 240 | |
65 | 260 | 130 | 180 | 145 | 120 | 16 | 3 | 4-18 | 193 | 270 | |
80 | 280 | 140 | 195 | 160 | 135 | 20 | 3 | 8-18 | 217 | 350 | |
100 | 320 | 160 | 215 | 180 | 155 | 20 | 3 | 8-18 | 245 | 500 | |
125 | 380 | 190 | 245 | 210 | 185 | 22 | 3 | 8-18 | 282 | 600 | |
150 | 440 | 220 | 280 | 240 | 210 | 24 | 3 | 8-23 | 319 | 1000 | |
200 | 550 | 260 | 335 | 295 | 265 | 26 | 3 | 12-23 | 380 | 1300 | |
250 | 670 | 310 | 405 | 355 | 320 | 30 | 3 | 12-25 | 460 | 1700 | |
300 | 720 | 370 | 460 | 410 | 375 | 30 | 3 | 12-25 | 520 | 2100 |
美標T型連接尺寸及外形150LB
公稱通徑 DN | 尺寸 | |||||||||
(in) | (mm) | L | D | D1 | D2 | b | f | Z-φd | H | LO |
1/2 | 15 | 140 | 89 | 60.5 | 35 | 10 | 1.6 | 4-φ15 | 55 | 130 |
3/4 | 20 | 165 | 98 | 70 | 43 | 11 | 1.6 | 4-φ15 | 55 | 130 |
1 | 25 | 165 | 108 | 79.5 | 51 | 12 | 1.6 | 4-φ15 | 70 | 140 |
11/4 | 32 | 220 | 117 | 79 | 64 | 13 | 1.6 | 4-φ15 | 75 | 180 |
11/2 | 40 | 250 | 127 | 98.5 | 73 | 15 | 1.6 | 4-φ15 | 90 | 220 |
21/2 | 50 | 260 | 152 | 120.5 | 92 | 16 | 1.6 | 4-φ19 | 104 | 260 |
2 | 65 | 320 | 178 | 139.5 | 105 | 18 | 1.6 | 4-φ19 | 153 | 350 |
3 | 80 | 320 | 190 | 152.5 | 127 | 19 | 1.6 | 4-φ19 | 187 | 400 |
4 | 100 | 370 | 229 | 190.5 | 157 | 24 | 1.6 | 8-φ19 | 206 | 500 |
5 | 125 | 510 | 254 | 216 | 186 | 24 | 1.6 | 8-φ22 | 252 | 600 |
6 | 150 | 510 | 279 | 241.5 | 216 | 26 | 1.6 | 8-φ22 | 244 | 1000 |
8 | 200 | 580 | 373 | 298.5 | 270 | 29 | 1.6 | 8-φ22 | 283 | 1300 |
10 | 250 | 670 | 406 | 362 | 324 | 31 | 1.6 | 12-φ25 | 345 | 1600 |
12 | 300 | 720 | 483 | 432 | 381 | 32 | 1.6 | 12-φ25 | 420 | 2100 |
